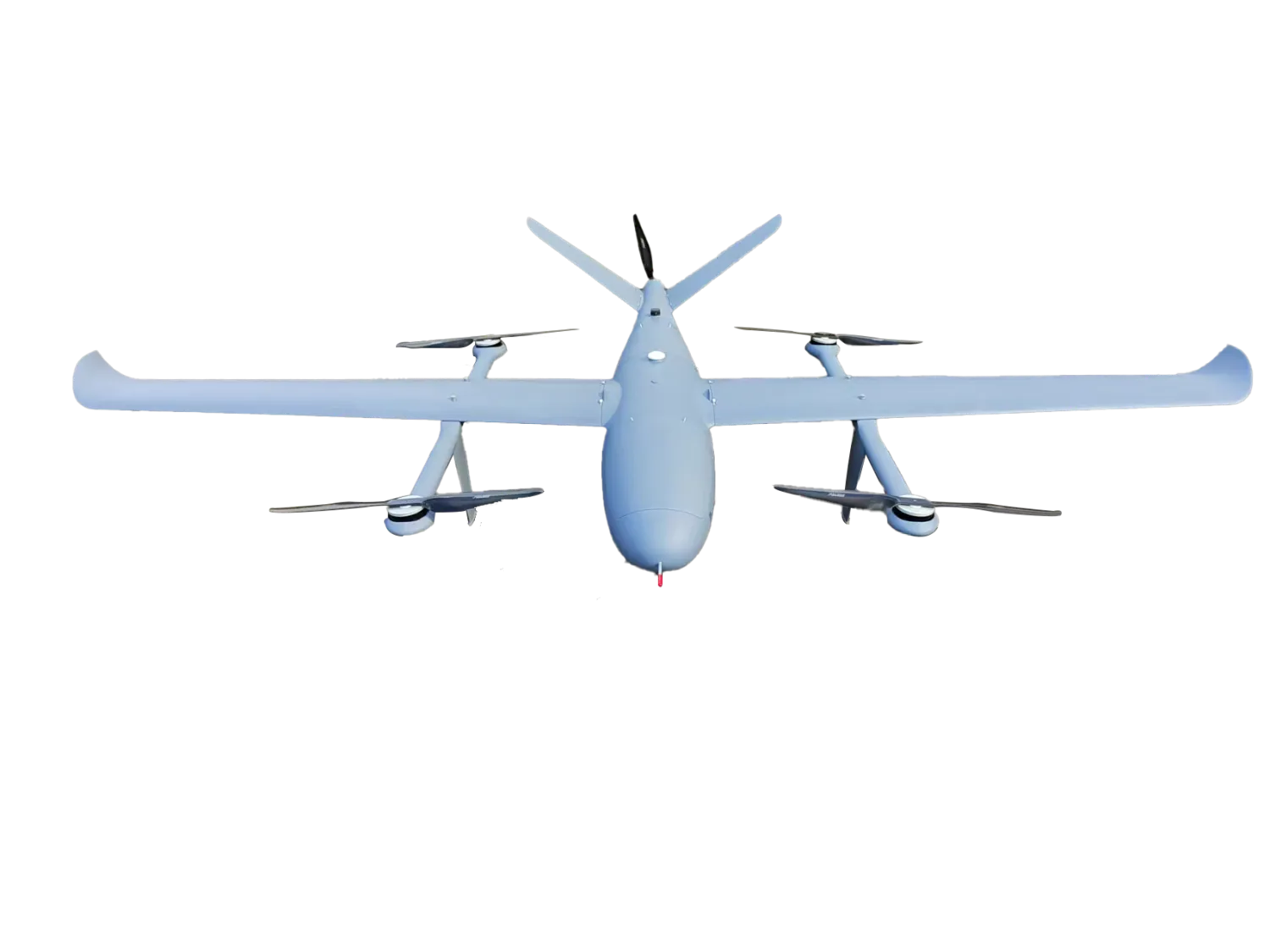

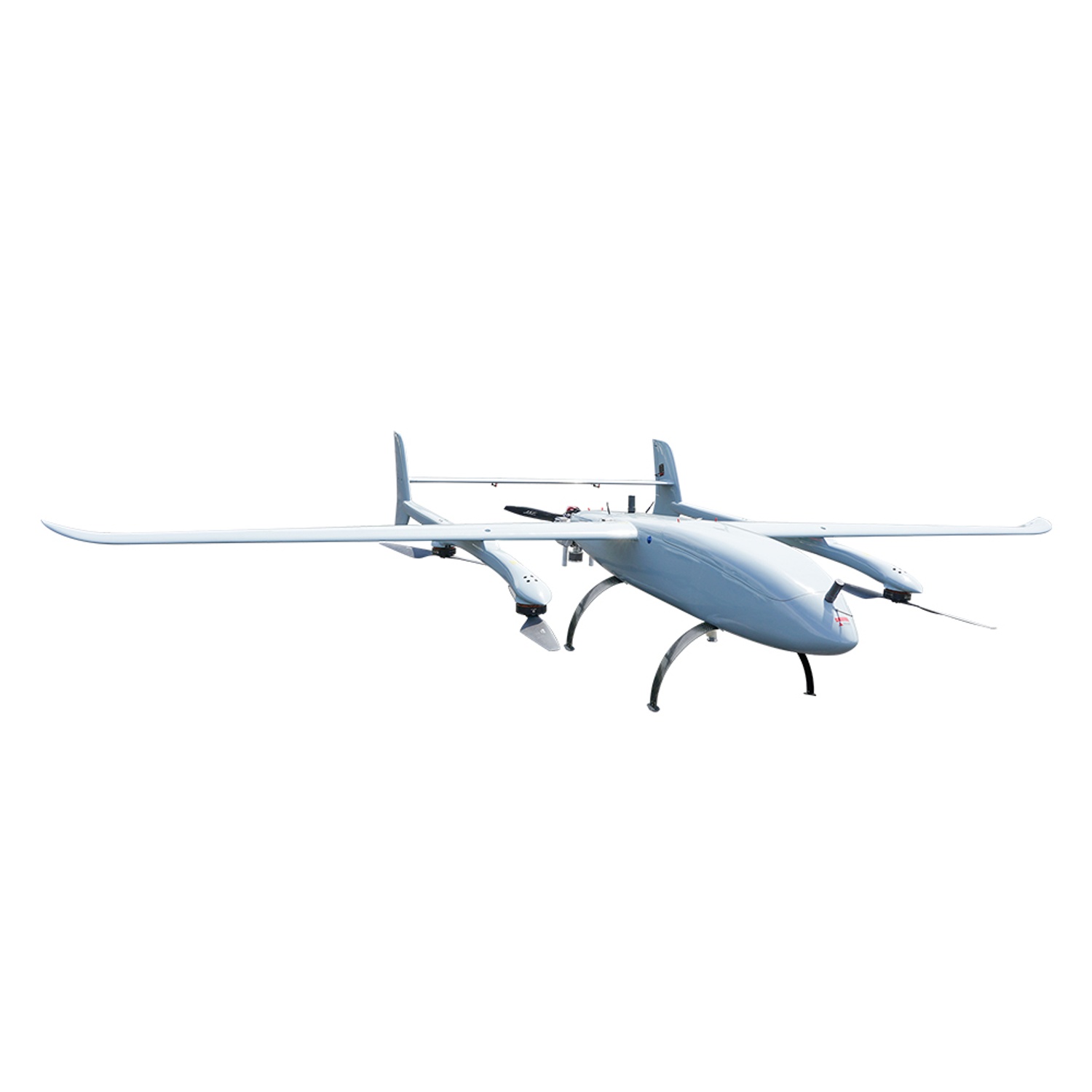

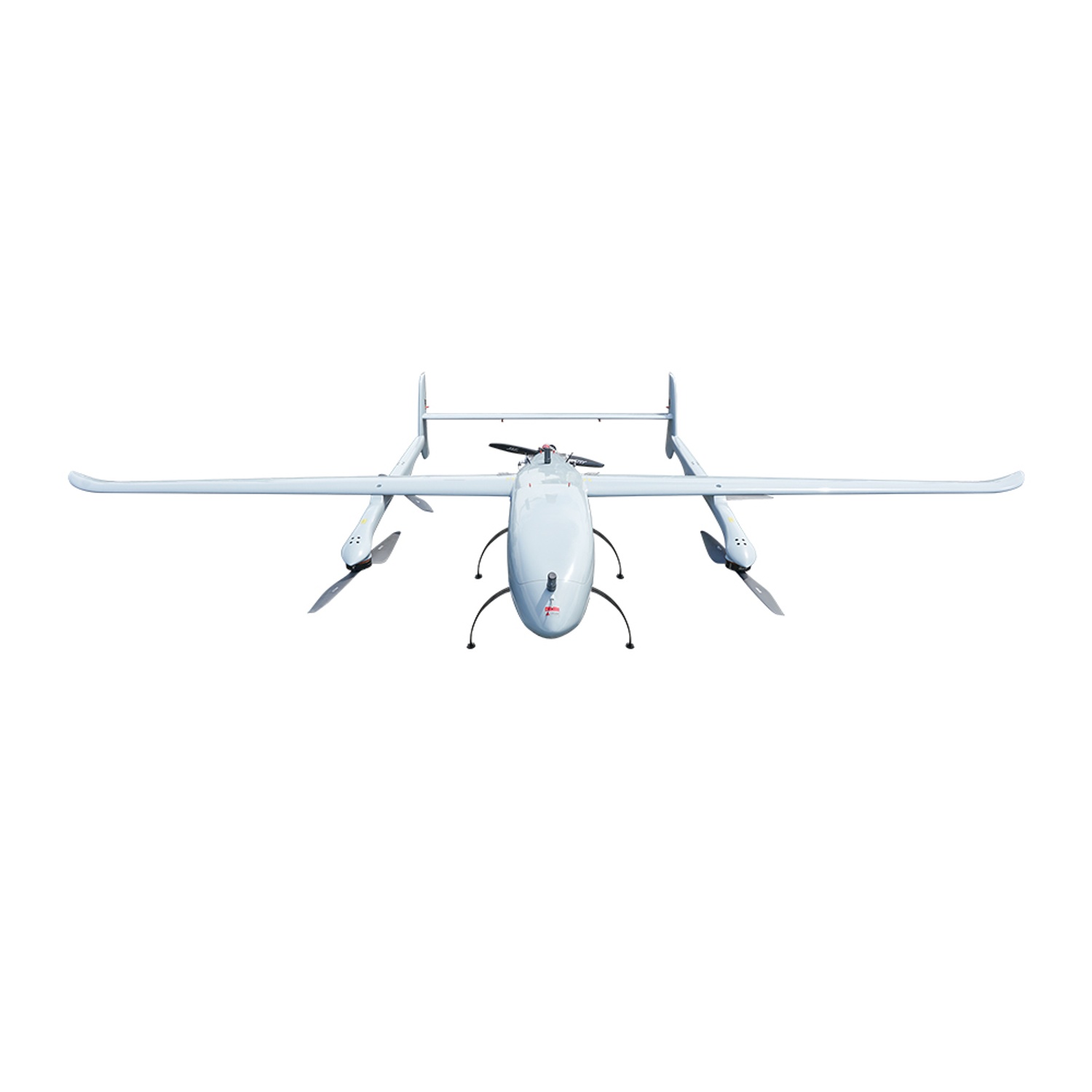

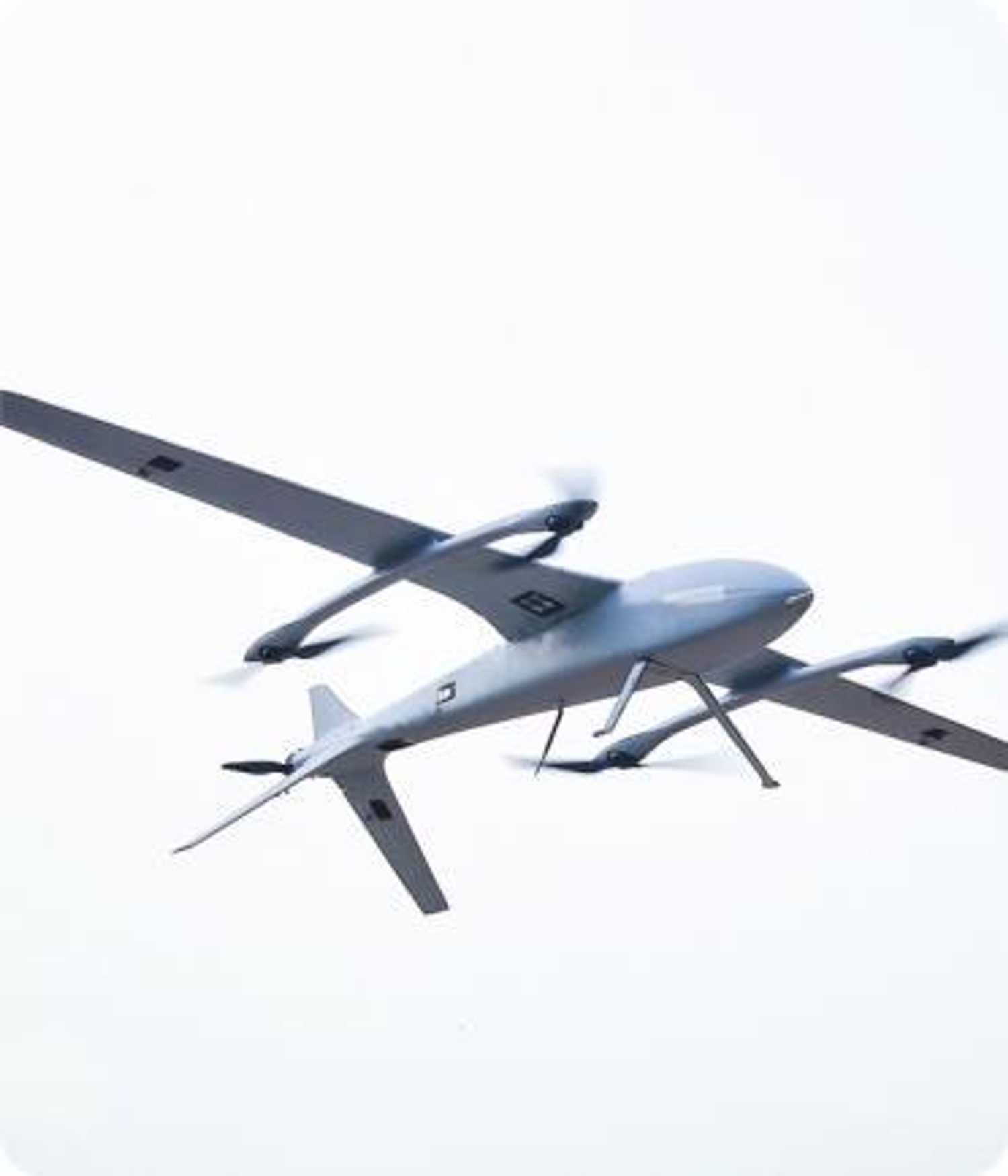

OVERVIEW NGD UV100 VTOL is an industrial-grade UAV features with 3.9m wingspan designed for long endurance and heavy lift missions. With a fuel powered engine and 10L petrol, the endurance can reach up to 10 hours with 5kg payload, and the maximum payload capacity up to 8kg. NGD UV100 VTOL fuselage is made of Kevlar, Carbon Fiber and Glass Fiber of highly advanced aerodynamic design that makes the drone light and durable. It is easy to assemble and storage with quick-release design. NGD UV100 VTOL is designed with a 23inch engine wooden propeller that gives the maximum cruising speed 144km/h, the stall speed is 18m/s and the Max. Take-off Weight 35kg. NGD UV100 VTOL is equipped with CUAV X7 Pro autopilot flight control system, built-in highprecision sensor with 1024K RAM. and it is built with dual-RTK position module to continuously and precisely lock the course without fear of electromagnetic interference. NGD UV100 VTOL has the built-in datalink is DIR-150, with 1.4G frequency 150km transmission range for both video and data with high-definition and low latency. The datalink continuously detects the interference status of all available channels in real time, and when the current working channel is interfered, it automatically selects and switches to the channel with the lowest interference to ensure continuous and reliable communication. NGD UV100 VTOL is equipped with an industrial-grade suitcase typed GCS, with dual high light screen and Win10 operation system, it has integrated datalink/video link, RC and PC system to fulfill the control of drone and payload, data/video transmission, real-time flight status feedback and route planning etc. NGD UV100 VTOL is integrated with A30-TR camera in this system, featuring 30x optical zoom, EO SONY camera, a 50mm 640x512 12μm IR thermal sensor, 5km laser rangefinder and GPS coordinate of target feature. A30-TR supports car and human auto detection and stable tracking. NGD UV100 VTOL is designed to be widely used in inspections, fire point searching, searching and rescue, day and night surveillance, enforcement missions.
