NGD-TUAV-R02 MILITARY TETHERED DRONES

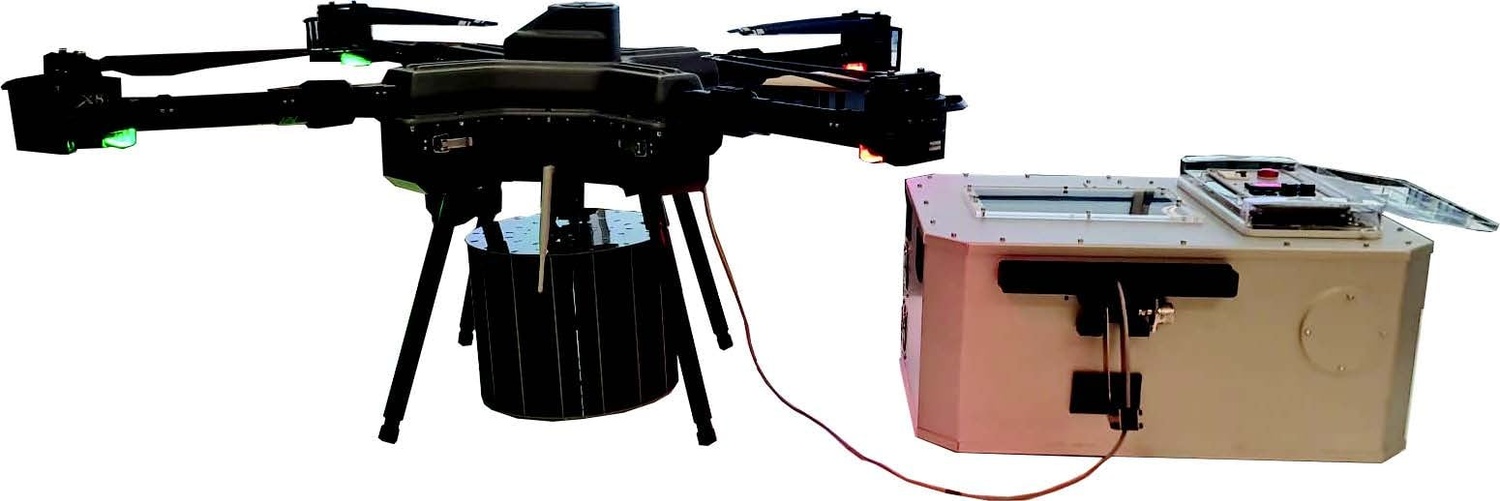

NGD Tethered UAV (TUAV) is drone system that lifts payloads, such as cameras or radios/antennas
up to 150 m. with 400+ hr. endurance. Just by lifting up an anten-na, the TUAV system can extend
ground/boat radio line of site upto 40+ km.
Designed for harsh conditions, NGD TUAV supports boarder security, stationary operations, small
tactical units, and it dismounts in all terrain. With an 8 lb payload capacity, the TUAS can lift multiple
payloads including EO/IR cameras and a radio for data back-haul or data transmission extension
antennas and cables.
Use Cases
- Perimeter / border security
- Emergency portable cell phone tower
- Port/stadium security
- Traffic monitoring
- Air quality monitoring
- Radio range extension of unmanned boats and ground vehicles
- Telecommunications
- Long endurance environmental assess-ments & surveys
- Soldier/ convoy over-watch
- Increased battlefield communications and situational awareness
NGD-TUAV-R02 MILITARY TETHERED DRONES
NGD Tethered UAV (TUAV) is drone system that lifts payloads, such as cameras or radios/antennas
up to 150 m. with 400+ hr. endurance. Just by lifting up an anten-na, the TUAV system can extend
ground/boat radio line of site upto 40+ km.
Designed for harsh conditions, NGD TUAV supports boarder security, stationary operations, small
tactical units, and it dismounts in all terrain. With an 8 lb payload capacity, the TUAS can lift multiple
payloads including EO/IR cameras and a radio for data back-haul or data transmission extension
antennas and cables.
Use Cases
- Perimeter / border security
- Emergency portable cell phone tower
- Port/stadium security
- Traffic monitoring
- Air quality monitoring
- Radio range extension of unmanned boats and ground vehicles
- Telecommunications
- Long endurance environmental assess-ments & surveys
- Soldier/ convoy over-watch
- Increased battlefield communications and situational awareness
NGD-TUAV-R02 MILITARY TETHERED DRONES
NGD Tethered UAV (TUAV) is drone system that lifts payloads, such as cameras or radios/antennas
up to 150 m. with 400+ hr. endurance. Just by lifting up an anten-na, the TUAV system can extend
ground/boat radio line of site upto 40+ km.
Designed for harsh conditions, NGD TUAV supports boarder security, stationary operations, small
tactical units, and it dismounts in all terrain. With an 8 lb payload capacity, the TUAS can lift multiple
payloads including EO/IR cameras and a radio for data back-haul or data transmission extension
antennas and cables.
Use Cases
- Perimeter / border security
- Emergency portable cell phone tower
- Port/stadium security
- Traffic monitoring
- Air quality monitoring
- Radio range extension of unmanned boats and ground vehicles
- Telecommunications
- Long endurance environmental assess-ments & surveys
- Soldier/ convoy over-watch
- Increased battlefield communications and situational awareness
NGD-TUAV-R02 MILITARY TETHERED DRONES
NGD Tethered UAV (TUAV) is drone system that lifts payloads, such as cameras or radios/antennas
up to 150 m. with 400+ hr. endurance. Just by lifting up an anten-na, the TUAV system can extend
ground/boat radio line of site upto 40+ km.
Designed for harsh conditions, NGD TUAV supports boarder security, stationary operations, small
tactical units, and it dismounts in all terrain. With an 8 lb payload capacity, the TUAS can lift multiple
payloads including EO/IR cameras and a radio for data back-haul or data transmission extension
antennas and cables.
Use Cases
- Perimeter / border security
- Emergency portable cell phone tower
- Port/stadium security
- Traffic monitoring
- Air quality monitoring
- Radio range extension of unmanned boats and ground vehicles
- Telecommunications
- Long endurance environmental assess-ments & surveys
- Soldier/ convoy over-watch
- Increased battlefield communications and situational awareness
NGD-TUAV-R02 MILITARY TETHERED DRONES
NGD Tethered UAV (TUAV) is drone system that lifts payloads, such as cameras or radios/antennas
up to 150 m. with 400+ hr. endurance. Just by lifting up an anten-na, the TUAV system can extend
ground/boat radio line of site upto 40+ km.
Designed for harsh conditions, NGD TUAV supports boarder security, stationary operations, small
tactical units, and it dismounts in all terrain. With an 8 lb payload capacity, the TUAS can lift multiple
payloads including EO/IR cameras and a radio for data back-haul or data transmission extension
antennas and cables.
Use Cases
- Perimeter / border security
- Emergency portable cell phone tower
- Port/stadium security
- Traffic monitoring
- Air quality monitoring
- Radio range extension of unmanned boats and ground vehicles
- Telecommunications
- Long endurance environmental assess-ments & surveys
- Soldier/ convoy over-watch
- Increased battlefield communications and situational awareness
NGD-TUAV-R02 MILITARY TETHERED DRONES
NGD Tethered UAV (TUAV) is drone system that lifts payloads, such as cameras or radios/antennas
up to 150 m. with 400+ hr. endurance. Just by lifting up an anten-na, the TUAV system can extend
ground/boat radio line of site upto 40+ km.
Designed for harsh conditions, NGD TUAV supports boarder security, stationary operations, small
tactical units, and it dismounts in all terrain. With an 8 lb payload capacity, the TUAS can lift multiple
payloads including EO/IR cameras and a radio for data back-haul or data transmission extension
antennas and cables.
Use Cases
- Perimeter / border security
- Emergency portable cell phone tower
- Port/stadium security
- Traffic monitoring
- Air quality monitoring
- Radio range extension of unmanned boats and ground vehicles
- Telecommunications
- Long endurance environmental assess-ments & surveys
- Soldier/ convoy over-watch
- Increased battlefield communications and situational awareness
Step 1 of 6
Aircraft Technical Specifications
Features
DatalinkStabilized, vehicle-agnostic tethered UAV
24/7 Endurance
Automation
User interface
Installation
Speed/altitude
Technical Description
Payload
Altitude
Small Footprint
UAV Case
Tether Management System (TMS)
Power
Reduced operators
Simple GUI and minimal operator input
Payloads
Modular Payload Capabilities
SIGINT
Datalink
Explanation
Deploy from manned or unmanned platforms (boats/vehicle)
Itelligently follows the host vehicle at speeds up to 60 km/h
Deploy/recover in under 2 minutes
Operate as long as needed for without landing to change batteries
Automated take-off, flight and following, and landing

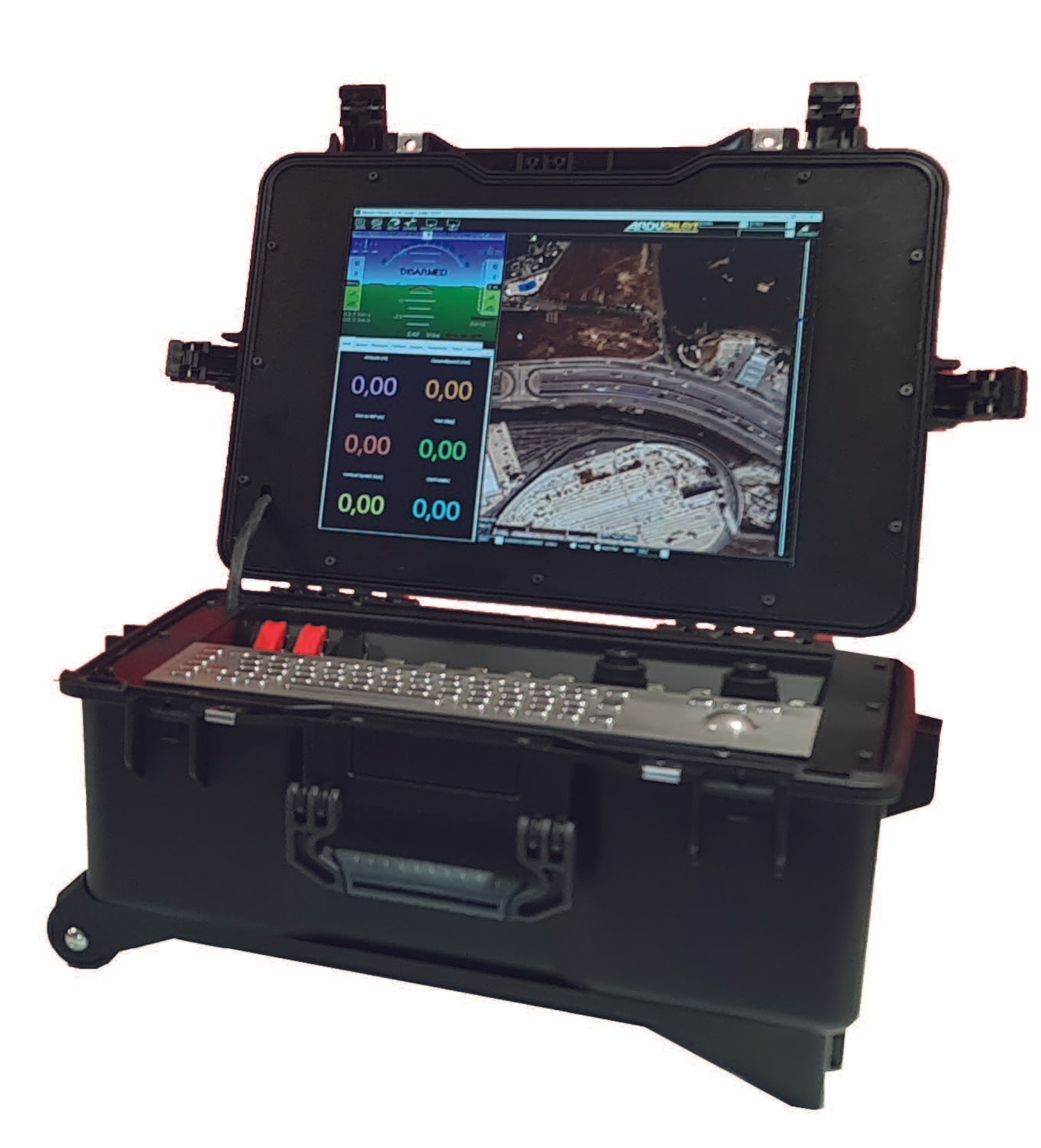

Simple, easy, 1-screen interface for UAV control
Vehicle agnostic; non-permanent installation
25+ kts (46+ kmh), at up to 150 m above ground level
Secure Ethernet command/control through tether prevents jamming/hacking
10 kg (SIGINT, DF, EO/IR and Comm relay payloads)
Operational 100m Max 150m
Three Pelican cases
90 x 90 x 40 cm
80 x 50 x 40 cm Embedded Ground Power Unit (GPU)
100-240 VAC, 4000W (Generator, inverter, etc)
Payload operator flies UAV
Enable, Takeoff, Land & Change Altitude.

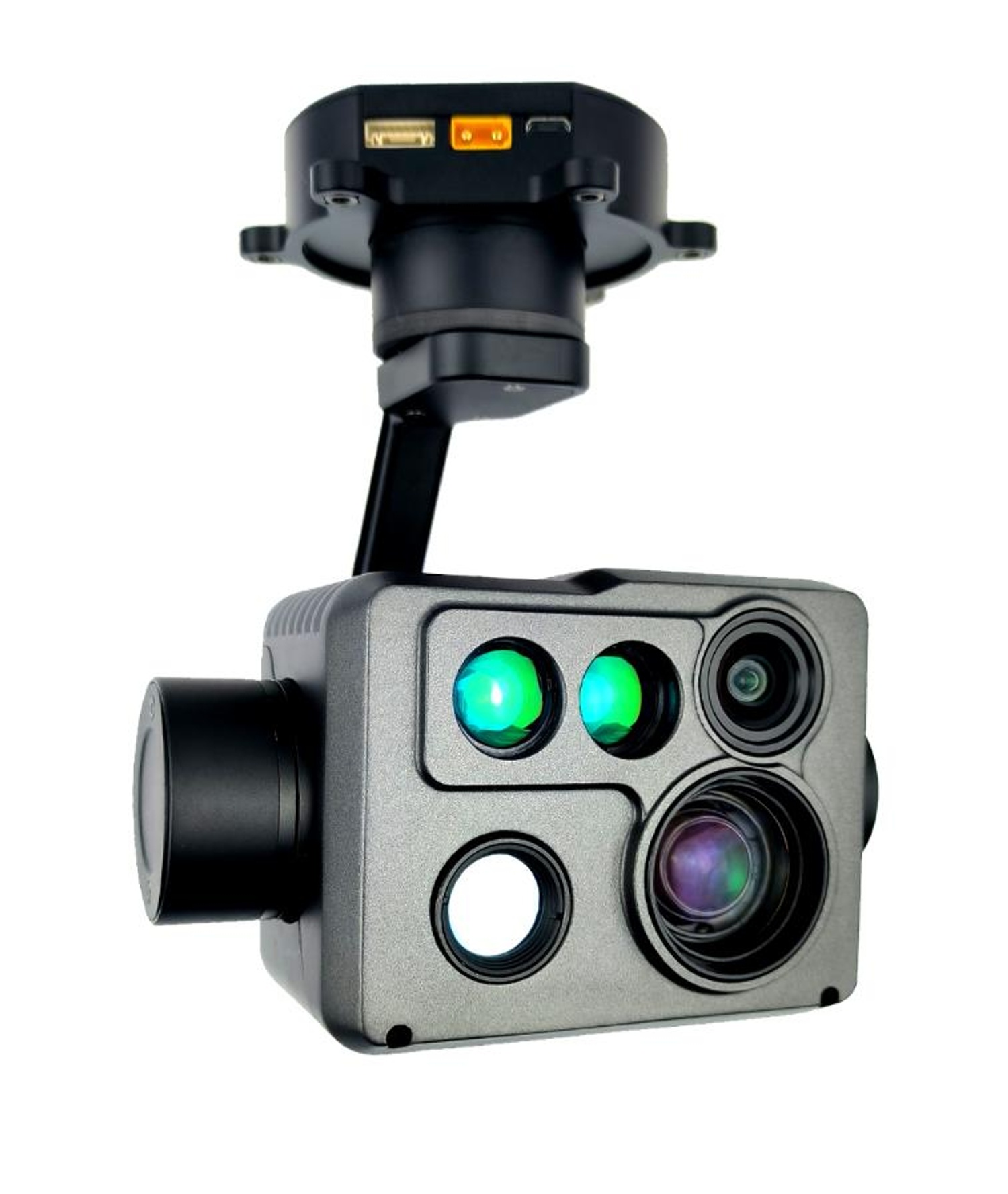

HFI, EO/IR/LD/LR, DF, SIGINT, & jamming capabilities
Provides 24 hr overwatch with DF capabilities
Fiber Ethernet 1 gbps or Secure WiFi
